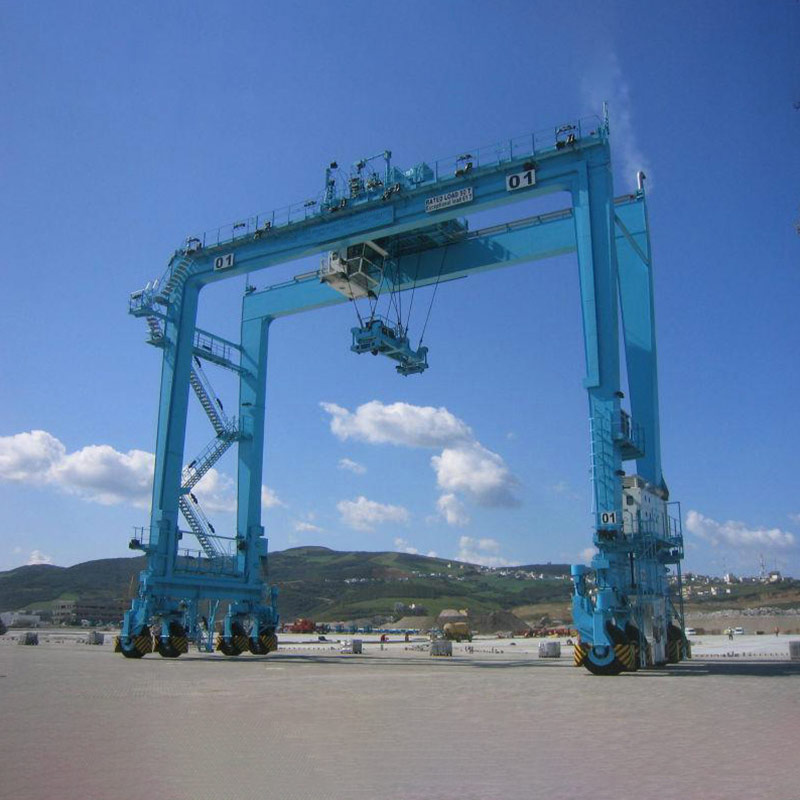

30.5t/35t/40.5t Rubber Tire RTG Container Crane Shipbuilding Gantry Crane

Brand Name : YT

Model Number : RTG

Certification : CE ISO

Place of Origin : Xinxiang,Henan Province,China

MOQ : 1set

Price : USD25000-55000per unit

Payment Terms : L/C, T/T, Western Union

Supply Ability : 8000sets per yaer

Delivery Time : 45-90work dyas

Packaging Details : The electrical part is packed in a wooden case, and the rest is wrapped in waterproof plastic. Goods are shipped in standard shipping containers or bulk carriers.

Type : RTG

Main electrical parts : Schneider

Capacity of spreader : Generally 30.5t/35t/40.5t

Working class : A6-A8

According base : 7.4m/7.4m/7.5m

According lifting height : 15.4m/15.4m/18.2m

Control methods : Cabin control, remote control, press button control

OEM : Available

Voltage : 380V/50HZ/3Ph AC

Warranty : 24 Month

Contact Now

Customized Rubber Tire RTG Container Crane Shipbuilding Gantry Crane



Product Description



Rail-mounted container gantry cranes are mainly used for container loading, unloading, handling and stacking in container railway transshipment yards and large container storage and transportation yards. Rail-mounted container gantry crane is composed of main beam, rigid and flexible gantry legs, running trolley, hoisting mechanism, cart running mechanism, electrical system, operating cab, etc. According to the operation process of the yard, the cantilever is extended in the direction of the single door leg or the double door leg to become a single cantilever or double cantilever model, and the non-cantilever model is not extended.



Technical Details Sheet



Lifting weight (t) 10 16 20/10 32/10 36/16 50/10
Span (m) 18-35 18-30 18-35 22 26 22-35 35
Lifting height (m) Main hook 11.5 10.5,12 10.5 11.5 11.5 12
Auxiliary hook     11 12 12 13
Speed (m/min) Main hook 8.5 7.9 7.2 7.5 7.8 6
Auxiliary hook     10.4 104 10.5 10.4
Trolley travel 43.8 44.5 44.5 419 41.9 38.13
Long travel 376;40 38,36 38,36 40 40;38 38
Duty classification A5
Power source Three-phase AC. 127-480V 50/60HZ



Features:



  • This kind of crane is composed of bridge, support legs, crane travelling organ, trolley, electric equipment,strong lifting winch.
  • The frame adopts box-type welding mechanism. Crane travelling mechanism adopts separate driver. All mechanisms are operated in the driver cabin.
  • This crane adopts frequency conversion, PLC control system and CMMS fault detection system.
  • Main standard reference: GB/T19683-2005, JT/T566-2004, and ISO standard of International Standardization Organization, European FEM, Japan JIS standard.
  • Power is supplied by cable or slide wire. there are different capacity double beams gantry crane for your choice according to your actually use.
  • The spreader of the crane is usually fixed guide plate.
  • To reduce the swing of the spreader, a mechanical anti-roll device is installed.
  • In order to facilitate the box, equipped with spreader small Angle rotary device.



Product Sketch

30.5t/35t/40.5t Rubber Tire RTG Container Crane Shipbuilding Gantry Crane

30.5t/35t/40.5t Rubber Tire RTG Container Crane Shipbuilding Gantry Crane
