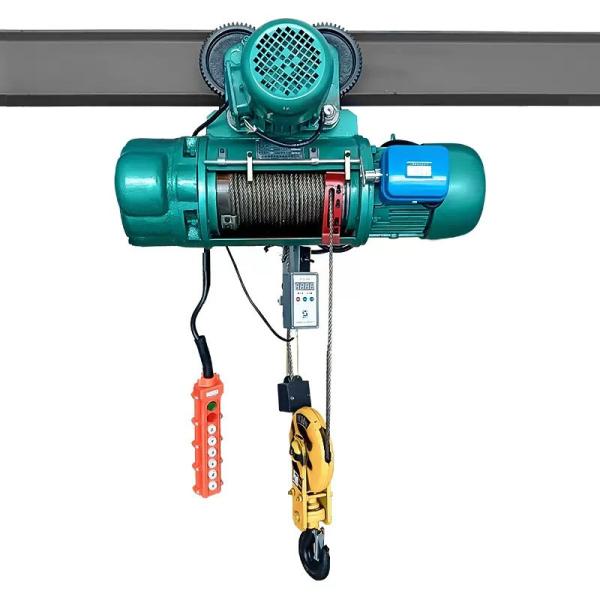

Cd / Md Model Electric Wire Rope Hoist And Trolley
Wire rope electric hoist is a kind of light and small lifting equipment that is popular at home and abroad. It has the characteristics of compact structure, convenient operation, light weight and wide versatility. It is widely used for lifting heavy objects or installing single beam electric cranes. It is widely used in factories. , Workshops, warehouses and other occasions directly hoist materials.
Model CD1, MD1 electric wire rope hoist is small-sized lifting equipment, which can be mounted on single beam, overhead, gantry and jib cranes, with slight modification. it can also be used as a winch. It is widely used in factories, warehoused, cargo store areas and shops. It is essential equipment in raising working efficiency and improving working conditions.
Model CD1 electric hoist has only normal speed, which can satisfy normal application. Model MD1 electric hoist provides two speed. At a low speed, it can do precise loading and unloading, mounding of sand box, maintenance of machine tools, etc.
Introduction:
CD type, MD type wire rope electric hoist is a kind of light and small lifting equipment, which is fixed on winch beam, used for lifting goods or for crane, gantry crane, cantilever crane and other industrial and mining crane enterprises.The wire rope hoist has the advantages of compact structure, light weight, small size, wide versatility, convenient operation and convenient maintenance. It can be installed on hoist single girder, bridge crane, gantry crane, jib crane. With a little modification, it can also be used for hoisting. Therefore, it is one of the commonly used lifting equipment in factories, mines, ports, warehouses, freight yards, stores, etc., and is an essential machine to improve labor efficiency and working conditions.
Component:
The components of the electric hoist are: motor, transmission mechanism, winding drum and sprocket.Electric hoist structure reducer: It adopts a three-stage fixed-axis helical gear rotating mechanism. The gear and gear shaft are made of heat-treated alloy steel. The box body and box cover are made of high-quality cast iron, with tight assembly and good sealing. The reducer is a self-contained part, and it is extremely convenient to install and remove.
Difference between CD and MD:
The hoisting speed of the CD type electric hoist is constant speed, which can meet the general use requirements; the MD type electric hoist has two hoisting speeds—normal speed and slow speed. When working at a slow speed, it can meet the requirements of fine operations such as precision loading and unloading, sand box clamping, machine tool maintenance and so on. Therefore, the MD type electric hoist is more widely used than the CD type electric hoist.
Electric hoist, also known as electric hoist, electric hoist lift. It retains the light and convenient characteristics of the chain hoist, and improves the manual operation of the chain hoist and the slow lifting speed.
| Lifting capacity(t) | 0.25 | 0.5 | 1, 2, 3, 5 | 10 | 16 | 20 |
| Lifting height(m) | 3, 6, 9 | 3, 6, 9 | 6, 9, 12, 18, 24, 30 | 9, 12, 18, 24, 30 | 9, 12, 18 | 9, 12, 18 |
| Lifting speed(m/min) | 8(8/0.8) | 7(7/0.7) | 3.5(3.5/0.35) | 4 |
| Travel speed(m/min) | 20 | 20/30 | 20 | 20 |
| Work system | Intermediate FC=25% |
| Power source | Three-phase AC 380V 50Hz |
